Disassembly Punch – 3/32″

Overview

Disassembly Punch – 3/32″ by Apex Tactical. Fits Apex Tactical.

Ships to all 50 states. Available nationwide.

This spring-powered disassembly punch is purpose-built for FN pistol owners in coastal environments. The 3/32″ tip has been precision-modified by Apex to be completely flat, delivering direct pin contact without the walk-off or marring common with standard tapered punches. For anyone who carries an FN 509, FN 510, or FN 545 daily along Florida’s salt air, this tool solves one of the most frustrating maintenance headaches: the stubborn front locking block pin.

Standard methods involving a hammer and drift punch often slip, damage the frame, or require multiple frustrating attempts. This punch uses a captured internal spring mechanism to deliver a controlled, repeatable shock load directly to the pin face. When properly aligned inside the recommended Apex Disassembly Fixture, a single pull-and-release of the hammer rings transfers enough energy to pop the pin free in just a few impacts. No more bruised knuckles or misplaced hammer swings on an oily workbench.

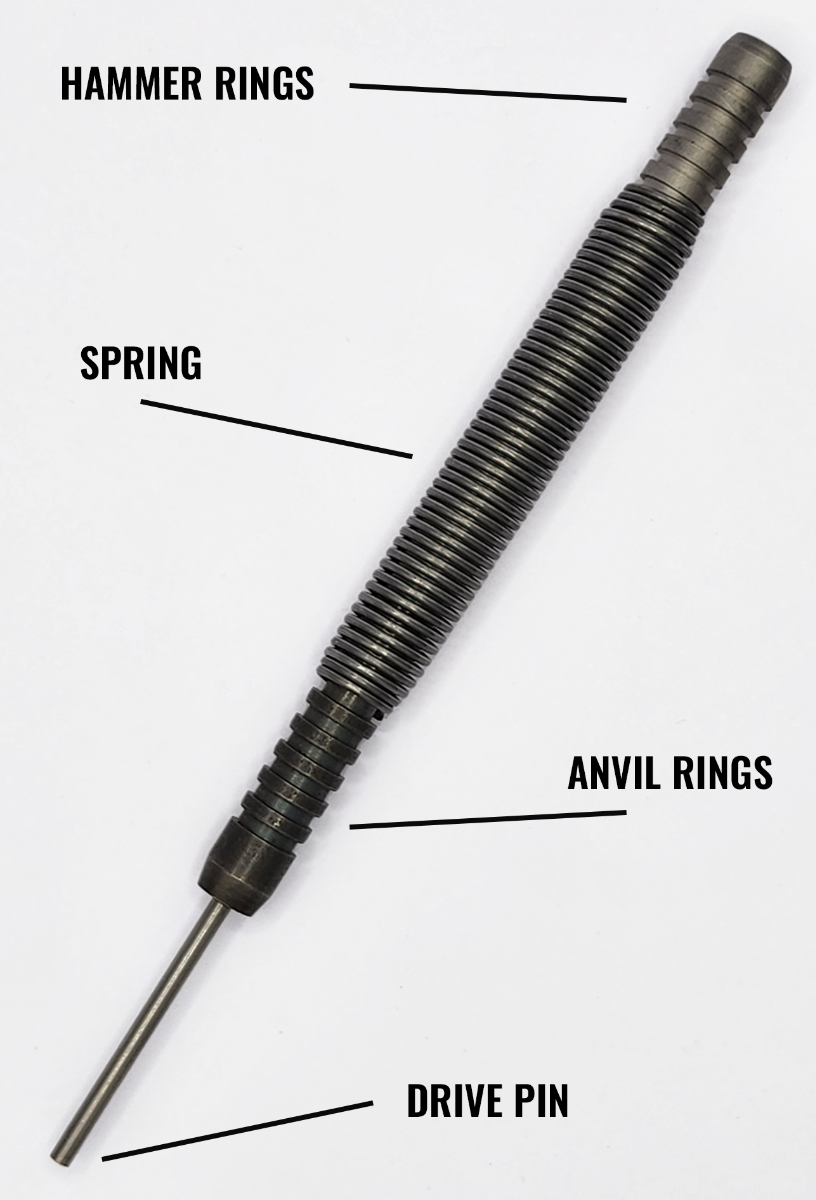

The design is corrosion-resistant, which matters when your gear lives in a humid safe, a center console, or a range bag that sees beach sand. The anvil rings and hammer rings are oversized for a secure grip even with sweaty or gloved hands. The body is constructed from hardened steel with a finish that stands up to Florida humidity without rust spotting.

How to use this punch correctly (always wear eye protection and clear all ammunition from your workspace first):

• Unload and field strip your FN pistol per factory instructions.
• Remove the take-down lever from the frame.
• Place the frame into the correct Apex Disassembly Fixture for your model.
• Set the fixture on a solid surface — over a workbench leg or on a concrete floor works best.
• Insert the 3/32″ punch tip into the top hole of the fixture, lowering it until it contacts the front locking block pin.
• Hold the anvil rings firmly with one hand to keep the punch aligned and the fixture steady.
• With your other hand, grasp the hammer rings and stretch the spring parallel to the punch shaft — approximately 2 inches of stretch is sufficient.
• Release the hammer. The spring pulls the hammer down onto the anvil, sending a shockwave through the pin.
• Check pin and fixture alignment after each strike. Repeat as needed — several impacts may be required to fully drive the pin free.

Specs & fitment:

• Tip diameter: 3/32″ flat face
• Compatible with: FN 509, FN 510, FN 545 (all variants)
• Requires: Apex Disassembly Fixture for your specific pistol model (sold separately)</
